1.Application description

It is used for the preparation stage before the election of national and regional leaders and members of parliament, and for collecting information during the registration of voters; this device suite supports: biometric registration, demographic acquisition, fingerprint collection, identity recognition, biometric authentication, face collection, document collection, document verification, signature collection，etc.

2.Product characteristics

It is a highly integrated kit, portable carrying case design, easy to carry and install and use;

It is fully configured to support both face and fingerprint biometric collection and file collection verification.

When the suitcase is opened, it can be used immediately. It is simple to set up, and the integrated UI is easy to use.

The equipment has high communication configuration and supports multiple positioning methods such as Beidou, GPS and Gronus.

The FAP60 fingerprint instrument has a large acquisition area and supports the acquisition of the left and right four fingers and two thumbs.

It is equipped with a thermal printer, which has a fast printing speed and can print voter registration returns anytime and anywhere.

It comes with a 10,000mah removable lithium-ion battery that can last 8-10 hours.

It has a cleverly designed flat stand to facilitate the operation of collecting face data and document scanning.

It uses a strong carrying case housing with IP67 product standard and is not afraid of drops from high places and wet water

It provides a fully documented SDK interface to facilitate users to embed their own application platform.

3.Application scenario

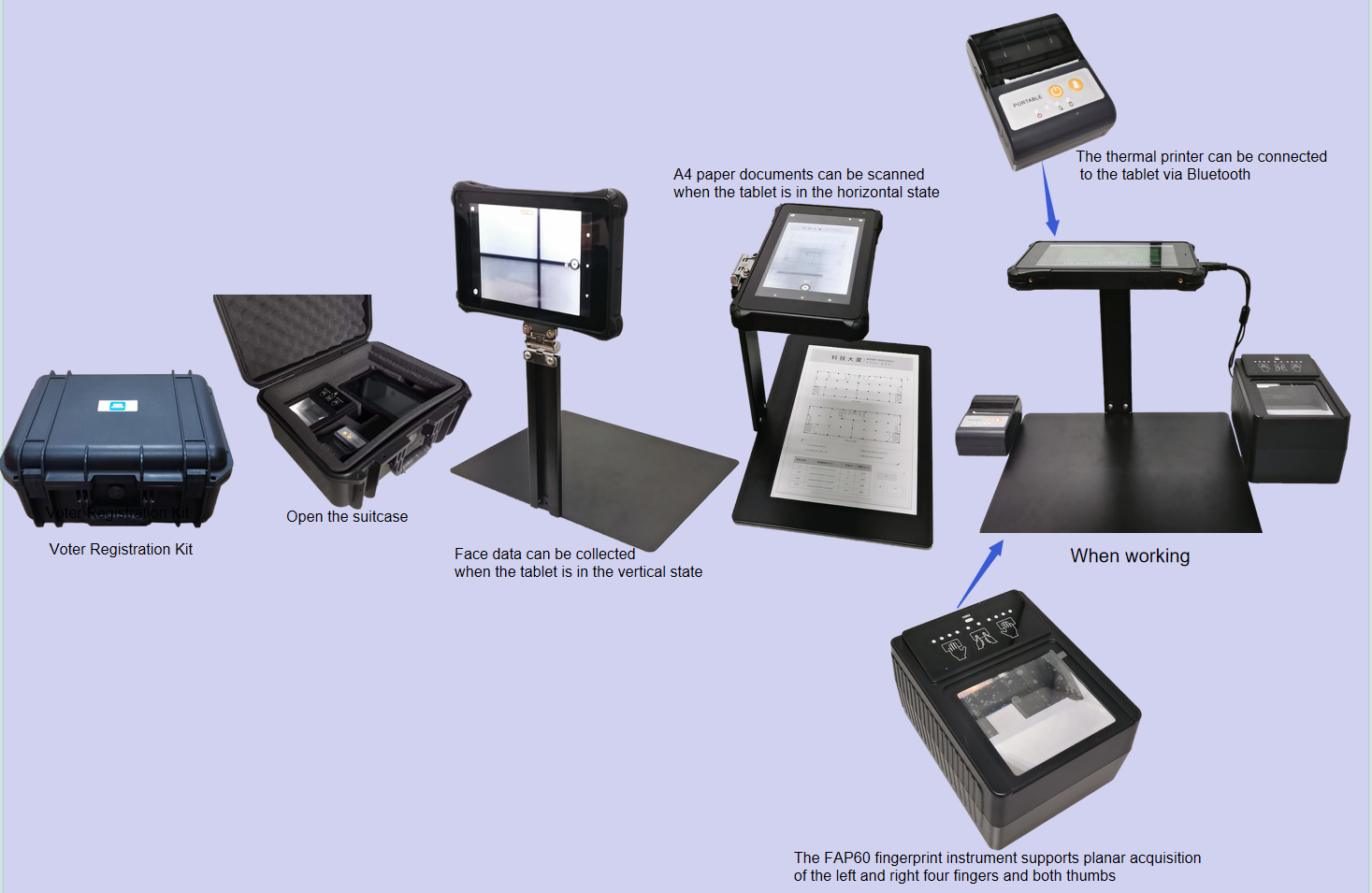

The voter registration device is highly integrated and uses a suitcase design for easy carrying and transportation，it is placed at the registration site during use，open the suitcase, use the tablet computer holder inside, attach the tablet computer to the holder, insert the fingerprint reader, thermal printer, and you are ready to use.

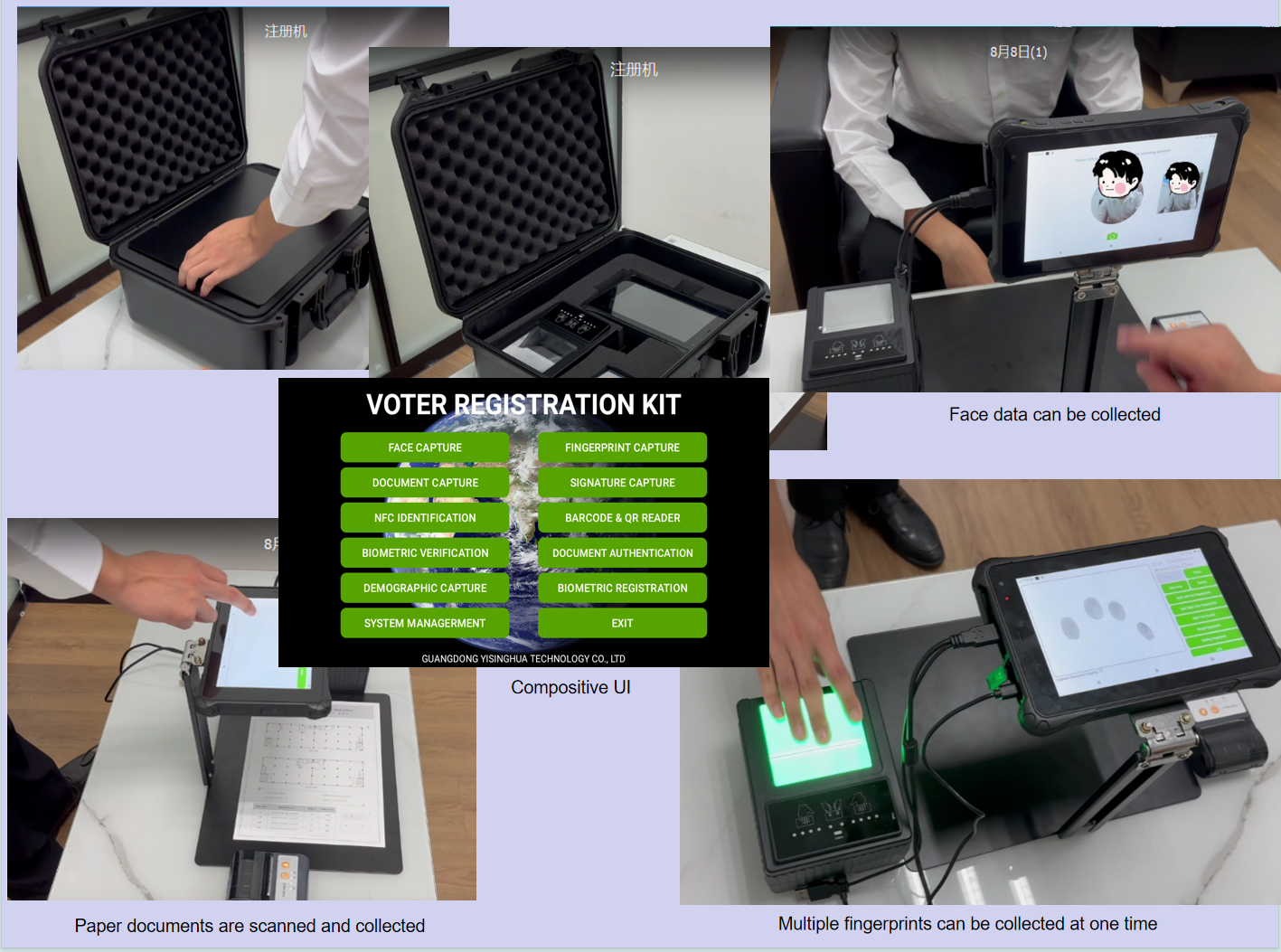

When the tablet computer is in a vertical state on the holder, the face data in front of it can be collected, when the tablet computer is in a horizontal state on the holder，the A4 paper document can be scanned and collected. the FAP60 fingerprint instrument supports flat collection of left and right four fingers and two thumbs, and also supports rolling collection of single finger. the bar code reading module supports recognition of bar code and QR two-dimensional code. NFC supports recognition of cards. use a thermal printer to instantly print voter registration receipts.

The voter registration device can be used to connect to the network and send the voter registration information to the local or remote voter registration management system in real time. it can also work independently off the network, this voter registration device is equipped with 1TB SSD, which can save the registration information of voters in the local machine, and then send it to the local or remote voter registration management system once after the information collection is completed.

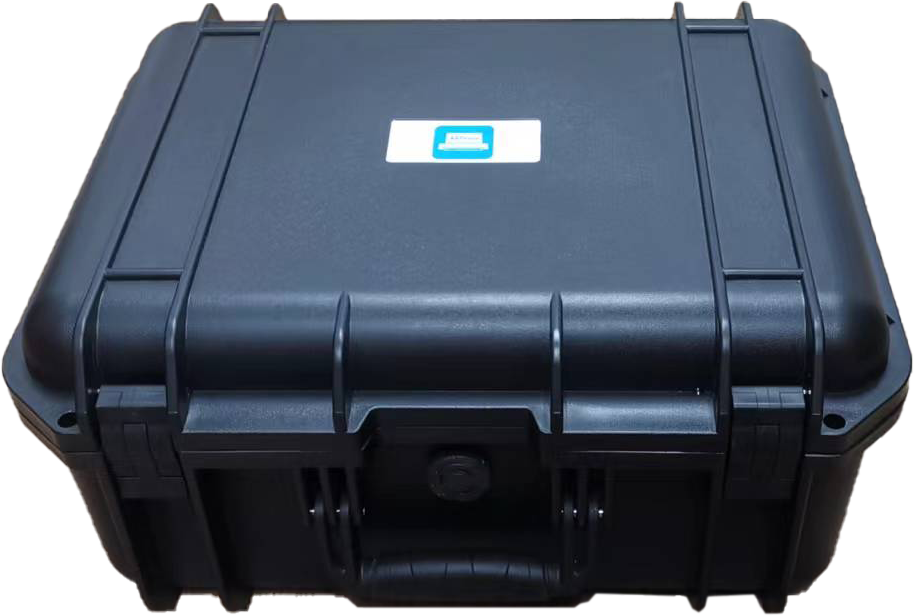

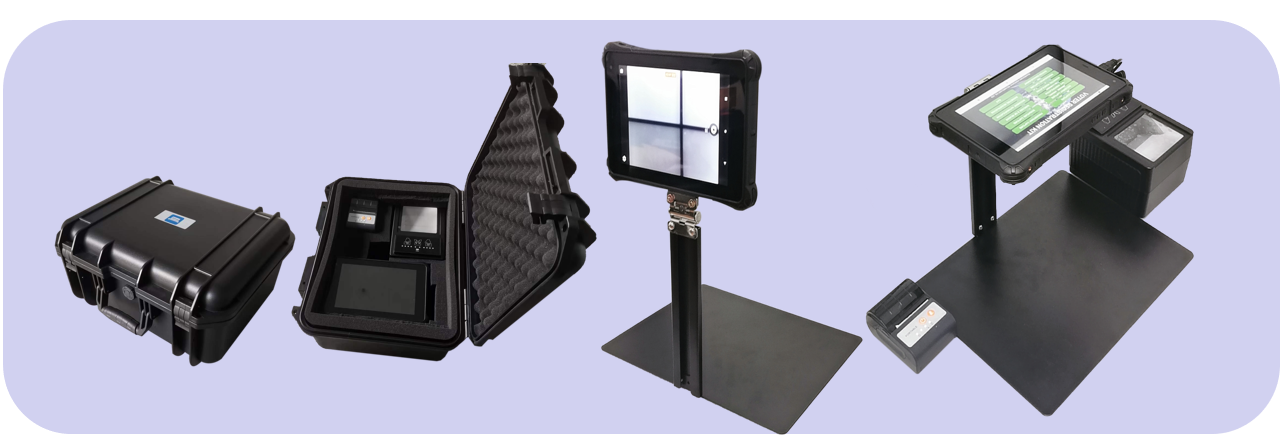

4.Product appearance

5.Product structure

6.technical specifications：
